Computer Numerical Control (CNC) machines have revolutionized the manufacturing and metalworking industries. These machines are capable of performing precise, repeatable, and complex cutting operations with minimal human intervention. A common question in the industry is whether CNC machines can cut metal efficiently and effectively. The short answer is yes—CNC machines are widely used for cutting metal, and they are essential tools in modern metal fabrication.
This article explores how CNC machines cut metal, the types of CNC machines used for metal cutting, the technology behind the process, and practical considerations to achieve the best results.
What is a CNC Machine?
A CNC machine is a computer-controlled device that automates machining processes such as cutting, drilling, milling, and turning. The machine follows a programmed set of instructions, known as G-code, which directs the tool’s movements and operations on the workpiece. CNC technology enhances accuracy, repeatability, and efficiency compared to manual machining methods.
Types of CNC Machines That Cut Metal
Different CNC machines are designed to work with various materials, including metals. The most common CNC machines for cutting metal include:

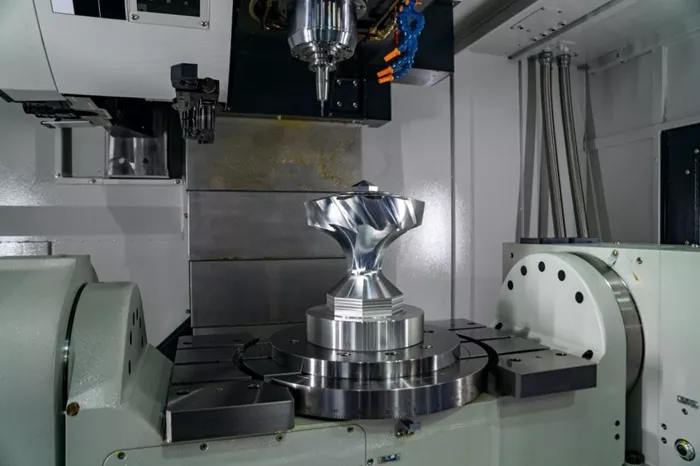

CNC Milling Machines
CNC milling machines use rotary cutting tools to remove material from a metal workpiece. They can perform operations such as slotting, drilling, and contouring. Milling machines work well on metals like aluminum, steel, brass, and titanium.
CNC Lathe Machines
CNC lathes rotate the metal workpiece against a stationary cutting tool. They excel at producing cylindrical shapes, threads, and complex profiles on metals. Lathes are commonly used for parts like shafts, bolts, and rings.
CNC Plasma Cutters
Plasma cutting uses an electrically conductive gas to generate a plasma jet capable of cutting through thick metal sheets. CNC plasma cutters automate this process, producing precise cuts in steel, stainless steel, and aluminum.
CNC Laser Cutters
Laser cutting uses a focused beam of light to melt or vaporize metal. CNC laser cutters offer high precision and can cut thin to medium-thickness metals with excellent edge quality.
CNC Waterjet Cutters
Waterjet cutting uses a high-pressure jet of water, often mixed with abrasive materials, to cut metals without generating heat. This method is ideal for heat-sensitive metals and produces clean, burr-free edges.
How CNC Machines Cut Metal: The Process Explained
Metal cutting by CNC machines involves removing unwanted material to shape the final product. The process varies depending on the machine type and cutting method, but the general workflow includes:
1. Designing the Part
The first step is creating a detailed 2D or 3D model of the part using CAD (Computer-Aided Design) software. This design forms the basis of the CNC program.
2. Generating the CNC Program
CAM (Computer-Aided Manufacturing) software converts the CAD model into G-code instructions. These instructions dictate the tool paths, speeds, feeds, and cutting sequences.
3. Setting Up the Machine
The operator mounts the metal workpiece onto the machine’s fixture and loads the required cutting tools. Proper alignment and securing of the metal piece are critical to ensure precision and safety.
4. Executing the Cutting Operation
The CNC machine runs the G-code program, moving the cutting tool or workpiece as specified. During the operation, coolant or lubrication may be applied to reduce heat and tool wear.
5. Finishing and Inspection
After cutting, the metal part may require deburring, polishing, or additional machining steps. Quality control inspections verify that the part meets specifications.
Key Factors Affecting Metal Cutting with CNC Machines
Several factors influence the success and quality of metal cutting using CNC machines:
Material Type and Hardness
Different metals respond differently to cutting. Softer metals like aluminum are easier to machine, while harder metals like stainless steel and titanium require specialized tools and cutting parameters.
Tooling
The selection of cutting tools is crucial. Tools must be made of materials that can withstand the hardness and heat generated during metal cutting, such as carbide or coated high-speed steel.
Cutting Speed and Feed Rate
These parameters determine how fast the tool moves across the metal and how much material it removes per pass. Optimizing these factors prevents tool damage and improves surface finish.
Coolant and Lubrication
Applying coolant reduces heat buildup, prolongs tool life, and improves cut quality. Different cutting operations and metals require specific types of coolants.
Machine Rigidity and Precision
A sturdy and well-maintained CNC machine ensures minimal vibrations and maintains accuracy during metal cutting.
Advantages of Using CNC Machines for Metal Cutting
CNC machines offer several benefits in metal cutting applications:
- Precision: CNC machines can achieve tight tolerances and consistent dimensions.
- Repeatability: Identical parts can be produced in large volumes without variation.
- Complexity: CNC technology enables machining of intricate shapes and features.
- Speed: Automated processes significantly reduce production time.
- Flexibility: Programs can be quickly modified for design changes or different parts.
Challenges and Considerations When Cutting Metal with CNC Machines
Despite the advantages, metal cutting with CNC machines presents challenges that manufacturers must address:
Tool Wear and Breakage
Metal cutting generates heat and forces that can wear down or break cutting tools. Regular maintenance and tool monitoring are essential.
Thermal Expansion
Heat generated during cutting can cause the metal to expand, potentially affecting dimensional accuracy.
Chip Management
Efficient removal of metal chips is necessary to prevent tool damage and maintain surface quality.
Cost of Equipment
High-precision CNC machines and tooling represent significant capital investments.
Popular Metals Cut by CNC Machines
CNC machines can cut a wide range of metals, including but not limited to:
- Aluminum: Lightweight and soft, widely used in aerospace and automotive industries.
- Steel: Commonly machined for structural and mechanical parts.
- Stainless Steel: Requires harder tools and optimized parameters due to its toughness.
- Brass and Copper: Good electrical and thermal conductors, often machined for electrical components.
- Titanium: Used in aerospace and medical fields; requires specialized tooling and slow feeds.
Future Trends in CNC Metal Cutting
The CNC metal cutting industry continues to evolve with innovations such as:
- Automation and Robotics: Integration with robotic arms for automated loading and unloading of metal parts.
- Advanced Tool Materials: Development of tools with higher wear resistance and thermal stability.
- Artificial Intelligence: AI-driven optimization of cutting parameters for improved efficiency.
- Hybrid Machines: Combining additive manufacturing with CNC subtractive processes for complex metal parts.
Conclusion
CNC machines are highly capable tools for cutting metal, offering precision, repeatability, and efficiency unmatched by manual methods. Various CNC technologies—including milling, turning, plasma cutting, laser cutting, and waterjet cutting—allow manufacturers to work with diverse metals to meet stringent quality standards. Understanding the right machine type, tooling, and cutting parameters is essential for maximizing performance and part quality.
With continued advancements in technology, CNC metal cutting remains a cornerstone of modern manufacturing, empowering industries from aerospace to medical devices with the ability to create complex, high-quality metal parts.
