Computer Numerical Control (CNC) machines have revolutionized modern manufacturing. These machines use computers to control machining tools such as lathes, mills, routers, and grinders. Unlike traditional manual machines, CNC machines offer high precision, repeatability, and efficiency. This guide explains how CNC machines work, their components, and their applications in the machinery industry.
What is a CNC Machine?
A CNC machine is a manufacturing device controlled by a computer program. It performs cutting, drilling, milling, and shaping of materials like metal, plastic, and wood. CNC machines follow coded instructions to produce complex parts accurately and consistently. They are widely used in automotive, aerospace, electronics, and many other industries.
Basic Components of a CNC Machine
1. Controller
The controller is the brain of a CNC machine. It reads the program code, usually in G-code format, and translates it into electrical signals. These signals command the machine’s motors and actuators to move the tool and workpiece precisely.
2. Machine Bed and Frame
The bed is the base that supports the entire machine. It provides stability and rigidity, which is essential for accurate machining. The frame holds the moving parts and withstands forces generated during cutting.
3. Drive System
The drive system controls movement along the machine’s axes. It typically consists of stepper motors or servo motors connected to lead screws, ball screws, or linear motors. These components convert electrical signals into precise mechanical movement.
4. Tooling System
The tooling system includes the cutting tools and tool holders. CNC machines can automatically change tools using a tool changer, which improves productivity by minimizing downtime.
5. Workholding Device
To secure the material during machining, a workholding device such as a vise, clamp, or fixture is used. Proper workholding is critical to ensure precision and safety.
How CNC Machines Work Step-by-Step
1. Designing the Part
The process starts with designing a part using CAD (Computer-Aided Design) software. This digital design serves as a blueprint for the final product.
2. Creating the Toolpath
Next, the design is converted into a toolpath using CAM (Computer-Aided Manufacturing) software. The toolpath defines the exact movements of the cutting tool to shape the material.
3. Generating G-code
The CAM software generates G-code, a numerical control programming language that instructs the CNC machine how to move. G-code includes commands for tool movements, speed, feed rate, and other machining parameters.
4. Loading the Program
The G-code program is transferred to the CNC machine’s controller via USB, network, or memory card. The operator loads the material and sets the tool and work coordinates.
5. Machining Operation
When the program runs, the controller sends signals to the motors, which move the cutting tool according to the toolpath. The machine removes material layer by layer to create the finished part.
6. Finishing and Inspection
After machining, the part may undergo finishing processes such as polishing or deburring. Finally, it is inspected to ensure it meets the required specifications and tolerances.
Types of CNC Machines
1. CNC Milling Machines
CNC milling machines use rotating cutting tools to remove material from a workpiece. They can move along multiple axes, commonly three (X, Y, Z), and advanced models have up to five or more axes for complex geometries.

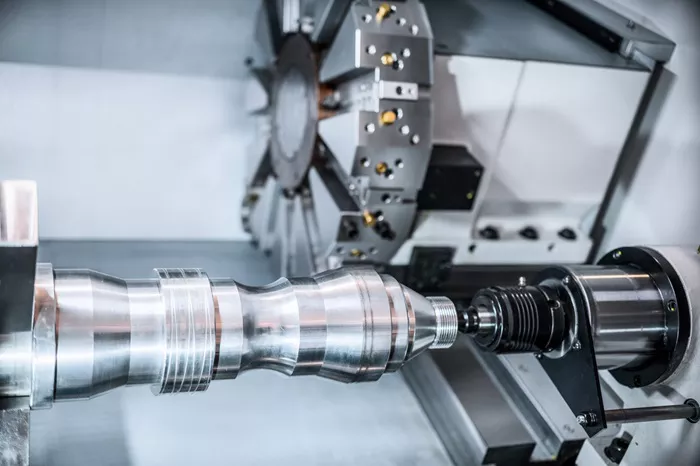

2. CNC Lathes
CNC lathes rotate the workpiece while a stationary cutting tool shapes it. They are ideal for producing cylindrical parts like shafts, bushings, and pulleys.
3. CNC Routers
CNC routers are similar to milling machines but primarily designed for cutting softer materials such as wood, plastics, and composites.
4. CNC Plasma Cutters
These machines use a high-velocity jet of ionized gas (plasma) to cut through electrically conductive materials like steel and aluminum.
5. CNC EDM (Electrical Discharge Machines)
EDM machines remove material using electrical sparks, suitable for hard metals or parts with complex shapes that are difficult to machine mechanically.
Key Advantages of CNC Machines
1. Precision and Accuracy
CNC machines can produce parts with tolerances as tight as a few microns, which is difficult to achieve with manual machining.
2. Consistency and Repeatability
Once programmed, CNC machines can manufacture thousands of identical parts with consistent quality, reducing human error.
3. Increased Productivity
Automated operation minimizes manual intervention and downtime, enabling continuous production and faster turnaround times.
4. Complex Shapes
CNC machines can cut complex 3D shapes that would be impossible or very difficult to produce by hand.
5. Flexibility
Changing the design only requires updating the program, not the physical tooling, making CNC ideal for custom and small-batch production.
Common Applications of CNC Machines
Automotive Industry
CNC machines manufacture engine components, transmission parts, and custom body panels with high precision.
Aerospace Industry
Parts for aircraft, such as turbine blades and structural components, are produced with stringent tolerances using CNC technology.
Electronics Industry
CNC machining is used to create enclosures, circuit boards, and connectors.
Medical Industry
Custom implants, surgical tools, and prosthetics require the accuracy that CNC machines provide.
General Manufacturing
From furniture to machinery parts, CNC machines play a vital role in modern production.
Programming CNC Machines: The Role of G-code
G-code is the standard language for CNC machines. It consists of commands that instruct the machine how to move, what speed to use, when to turn the spindle on or off, and other operations. A typical G-code program includes:
- G commands: Define movements, such as linear or circular interpolation.
- M commands: Control machine functions, like turning the coolant on or off.
- Coordinates: Specify positions in X, Y, and Z axes.
Programming can be manual or generated automatically from CAM software. Skilled programmers optimize the code to improve machining speed and surface finish.
Understanding CNC Machine Axes
CNC machines operate by moving tools or workpieces along multiple axes:
- X-axis: Left to right movement.
- Y-axis: Front to back movement.
- Z-axis: Up and down movement.
More advanced machines add rotational axes (A, B, C) that rotate the tool or the workpiece, enabling machining of complex shapes and undercuts.
Maintenance and Safety in CNC Machining
Maintenance
Regular maintenance is critical to keep CNC machines running smoothly. It includes lubrication, calibration, cleaning, and inspection of mechanical and electrical components. Preventive maintenance reduces downtime and extends machine lifespan.
Safety
Operators must follow safety protocols, including wearing protective gear, securing loose clothing, and keeping clear of moving parts. Emergency stop buttons and safety guards are standard features to protect users.
Future Trends in CNC Machining
The CNC industry is evolving with advances in technology:
- Automation: Integration with robotic arms and automated loading/unloading systems.
- Artificial Intelligence: AI-assisted programming and predictive maintenance.
- Multi-axis Machining: Increasing use of 5-axis and 6-axis machines for complex parts.
- Material Innovation: Machining new materials like composites and ceramics.
- IoT Connectivity: Smart machines connected to factory networks for real-time monitoring and optimization.
Conclusion
CNC machines are indispensable tools in modern manufacturing. By combining computer control with precise mechanical systems, they enable production of complex, high-quality parts with efficiency and repeatability. Understanding how CNC machines work helps industries leverage their full potential and drives innovation across multiple sectors.
